Tri-Pro Injector Series

Warranty for TPIS-1 Tri-Pro Injector Series

Complete Owners Manual and Trouble Shooting Guide

Product Description:

• Always invest the highest quality equipment, accessories, and tools to get the job done right the first time.
• The intended use of the Tri-Pro Injector is to assist in the distribution of termiticides in most sub-slab areas that are likely to allow the entrance of termites into a structure.
• Tri-Con termiticide application tools are designed to treat beneath concrete slabs, especially in locations where the surface is covered with ceramic or wood tile, or any other specialized surfaces, or in a confined space.
• The intended use of the Tri-Pro Injector is to assist in the distribution of termiticides in most sub-slab areas that are likely to allow the entrance of termites into a structure.
• The TPIS-1: Tri-Pro Injector can be used for outside deep soil penetration.
• A gasket above the tip that protects the surface from termiticide splash back.
• Tri-Con Nozzles have been Proudly Designed, Engineered, Tested & Assembled in the United States of America in Cleveland, OH Since 1928.
• Commercial grade nozzle body, engineered to withstand hard daily use.
• The Ergo-Correct comfortable, full-hand pistol grip, provides flow control & instant on/off with a squeeze of the trigger.
• The top latch on the nozzle body can be removed to allow quick access for rebuilding your nozzle.
• The nozzle body can be completely rebuilt, using our rebuild kit V-C-210-CRK giving you a lifetime of use.
• Nozzle body is threaded to accept all Tri-Con sprayer nozzles and accessories.

Specifications:

• Valve body has a wall thickness of 1/8”
• H: 4.5”   W: 1 ¼”   L: 3”
• Thread Diameter: ¾”
• Connects to any standard ¾” garden hose

Package Includes:

• (1) TPIS-125-N: Applicator Spray Nozzle Body Complete
• (1) TPIS-H: Steel Adaptor Nut with Double Steel Handles

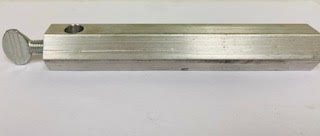

• (1) TPIS-FP: Hex 7/8" x 5 5/8"L Foot peg with Adjustment screw(for adjusting height)
• (1) TPIS-S-T: Threaded screw in spray Tip with 3/32"Through Hole
• (1) TPIS-180-T: Threaded Screw in Spray Tip with (2) 3/32" Side Holes for 180 Degree Spray
• (1) TPIS-360-T: Threaded Screw in Spray Tip with (4) 3/32" Side Holes for 360 Degree Spray
• (1) Gasket above the tip that protects the surface from termiticide splash back
• (1) TPIS-40”-SR: 3/8" OD x 1/4" ID 40” Threaded steel Injector Rod Only (doesn't include adapter nut & double handle)
• (1) TPIS-6”-SR: 3/8" OD x 1/4" ID 6” Threaded Steel Injector Rod with H-134 Adapter Nut
